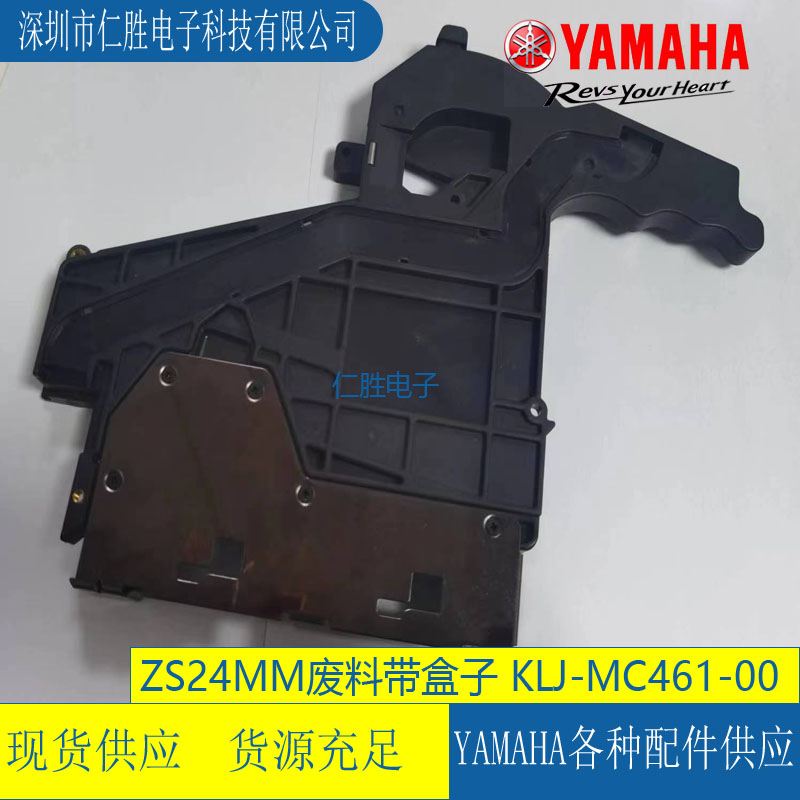

KLJ-MC461-00 雅馬哈ZS24MM電動(dòng)飛達(dá)廢料帶盒子 FEEDER BOX 24MM,TOP TAPE
KLJ-MC46Y-00 TOP TAPE BOX COMP. 1
2 KLJ-MC461-00 BOX 24MM,TOP TAPE 1
3 KHJ-MC165-00 MAGNET,TAIL 1
4 KLJ-MC1A1-00 BOX,EL 1
5 98502-03006 SCREW PAN HEAD 5
1 KLJ-MC210-00 MOTOR,FEED 1
2 KHJ-MC210-11 MOTOR,PEEL 1
3 90990-08J021 SCREW,STAD 4
4 90166-02JA03 SCREW,PAN HEAD 2
5 KLJ-MC167-00 COVER,MENBRANE 1
6 KLJ-MC2A4-00 COVER 12/24,ABS 1
7 90115-02J003 BOLT HEX.SOCKET HEAD 2
8 KLJ-MC1A5-00 DUMMY SPLICE SENS. 1 <Note-1>
9 KHJ-MC2A5-10 SPLICE SENS. LARGE 1 <Note-2>
10 KLJ-MC1AA-00 SWITCH,OPERATION 1
11 KLJ-MC1AL-00 SW,LIMIT 1
12 KLJ-MC1AJ-00 NUT,PLATE 1
13 KLJ-MC1AK-00 EXTRA,LOW HEAD CAP 1
14 KHJ-M4664-11 ABS BOARD ASSY. 1
15 KLJ-M4488-00 FEEDER BOARD ASSY. 1
16 90166-12JA06 SCREW,PAN HEAD W/W
KLJ-MC202-00 COVER 12/24,F.S. 1
2 KLJ-MC131-00 SPROCKET ASSY. 1
3 91312-03018 BOLT HEX.SOCKET HEAD 1
4 KLJ-MC2E1-00 GEAR,IDLE F1 ASSY. 1
5 KLJ-MC2E2-00 GEAR,IDLE F2 ASSY. 1
6 KLJ-MC1E3-00 GEAR,IDLE F3 ASSY. 1
7 KLJ-MC1E4-00 GEAR,IDLE F4 ASSY. 1
8 KLJ-MC438-00 GEAR 24MM,DRIVEN 1
9 KLJ-MC23G-00 SHAFT 12/24,D.G. 1
10 KLJ-MC23A-00 SHIM 12/24,SPROCKET 1
11 KLJ-MC4EK-00 COLLAR 24MM,D.G. 1
12 KLJ-MC2EH-00 BEARING 6-10 3
13 KLJ-MC2E8-00 FRANGE 12/24,WASHER 1
14 KLJ-MC2E9-00 WAVE WASHER,D.G. 6-8 1
15 KLJ-MC13P-00 SPACER,F3 1
16 KHJ-MC251-00 GEAR,IDLE P1 1
17 KHJ-MC252-00 GEAR,IDLE P2 1
18 KHJ-MC253-00 GEAR,IDLE P3 1
19 KHJ-MC254-00 GEAR,IDLE P4 1
20 KHJ-MC256-00 ROLLER, PEEL OFF 1 1
21 KHJ-MC258-01 COVER,IDLE GEAR 1 1
22 KHJ-MC259-00 COVER,IDLE GEAR 2 1
23 KHJ-MC45A-00 SUB-ROLLER,1 2
24 KHJ-MC25E-00 COVER,IDLE GEAR 3 1
25 90115-2AJ008 BOLT HEX. SOCKET HEAD 2
26 KHJ-MC466-00 BLOCK,P/O TOOTH 1 1
27 KHJ-MC46T-00 BOLT HEX.S/H LOW 2
28 KHJ-MC269-00 ROLLER,P/O 2 1
29 KHJ-MC46A-00 SHAFT,P/O LEVER 1 1
30 90440-01J030 CIRCLIP 1
31 90990-09J008 SCREW,FLAT HEAD 16
32 KLJ-MC1A2-00 COVER,BOX EL
99480-03010 PIN,PARALLEL 3
2 KHJ-MC104-00 RAIL,UNDER 1
3 KLJ-MC50C-00 SEAL,MAIN LABEL 1 <Note-1>
4 KLJ-MC541-00 TAPE GUIDE ASSY. 1
5 KHJ-MC244-00 LEVER,TAPE GUIDE R 1
6 99480-04028 PIN,PARALLEL 1
7 KLJ-MC545-00 LEVER,TAPE GUIDE F 1
8 KHJ-MC54E-00 SHAFT,LEVER 1
9 KHJ-MC146-02 SPRING,TAPE GUIDE R 1
10 KLJ-MC547-00 SPRING,TAPE GUIDE F 1
11 KLJ-MC54Y-00 PLATE,STOPPER 1
12 KLJ-MC1H1-00 COLLOR,STOPPER R 1
13 91312-03006 BOLT HEX.SOCKET HEAD 2
14 KLJ-MC562-00 COVER, TOP TAPE BOX 1
15 91317-03020 BOLT HEX.SOCKET HEAD 6
16 91317-03030 BOLT HEX.SOCKET HEAD 1
17 KLJ-MC563-00 COVER,TAIL 1
18 KLJ-MC575-00 PIN,TAIL COVER 1
19 KHJ-MC56V-00 P/O LEVER ASSY. 1
20 99480-05030 PIN,PARALLEL 1
21 KHJ-MC26E-00 SPRING,P/O LEVER 1
22 90990-09J008 SCREW,FLAT HEAD 2
23 KLJ-MC281-00 HANDLE W 1
24 KHJ-MC58G-00 SHAFT,HANDLE SUPPORT 1
25 KHJ-MC53N-00 PIN,DOWEL 1
26 91317-05016 BOLT HEX.SOCKET HEAD 1
27 91317-04012 BOLT HEX.SOCKET HEAD 1
28 99480-05014 PIN,PARALLEL 1
29 KLJ-MC5F4-00 PLATE,SUPPORT 1
30 98902-03005 SCREW BINDING HEAD 2
31 KHJ-MC1A9-00 CONNECTOR,BOARD 1
32 90166-02JA06 SCREW,PAN HEAD 2
33 KLJ-MC1AM-00 SHIELD,CONNECTOR 1
34 92A08-03306 SET SCREW M3X3 1
35 92A08-03303 SCREW,SE
|
